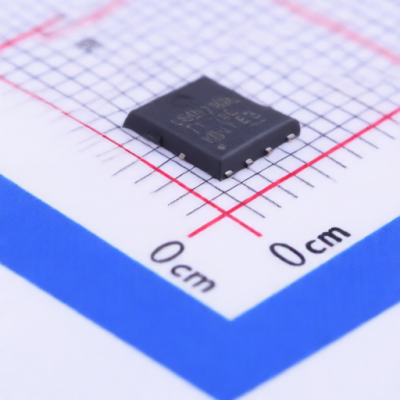

TI CSD17306Q5A

Name: TI CSD17306Q5A
Brand: TI

Manufacturer: TI

Mfr. Part #: CSD17306Q5A

Package: SON-8(5x6)

Customer #:

Key Attributes: MOSFET N-CH 30V 100A SON-8(5x6)

Description: N-Channel 30V 100A 3.2W Surface Mount SON-8(5x6)

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Package:

SON-8(5x6)

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

100A

Operating Temperature -:

-55℃~+150℃

RDS(on):

5.4mΩ@3V,22A

Gate Threshold Voltage (Vgs(th)):

1.6V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

73pF

Number:

1 N-channel

Output Capacitance(Coss):

1.16nF

Input Capacitance(Ciss):

2.17nF

Pd - Power Dissipation:

3.2W

Gate Charge(Qg):

[email protected]

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
