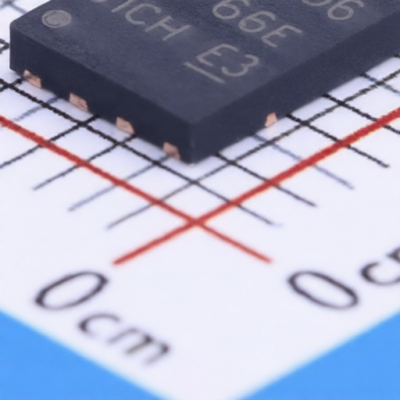

TI CSD16556Q5B

Name: TI CSD16556Q5B
Brand: TI

Manufacturer: TI

Mfr. Part #: CSD16556Q5B

Package: VSON-CLIP-8(6x5)

Customer #:

Description: 25V 263A 1.5mΩ@4.5V,30A 1.7V@250uA 1 N-channel 191W VSON-CLIP-8(6x5) Single FETs, MOSFETs RoHS

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Package:

VSON-CLIP-8(6x5)

Drain to Source Voltage:

25V

Current - Continuous Drain(Id):

263A

Operating Temperature -:

-55℃~+150℃

RDS(on):

1.5mΩ@4.5V,30A

Gate Threshold Voltage (Vgs(th)):

1.7V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

280pF

Number:

1 N-channel

Input Capacitance(Ciss):

6.18nF

Output Capacitance(Coss):

2.95nF

Pd - Power Dissipation:

191W

Gate Charge(Qg):

36nC@4.5V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2500
Sales Unit	Piece

Get Best Price

Inquiry

Negotiate
