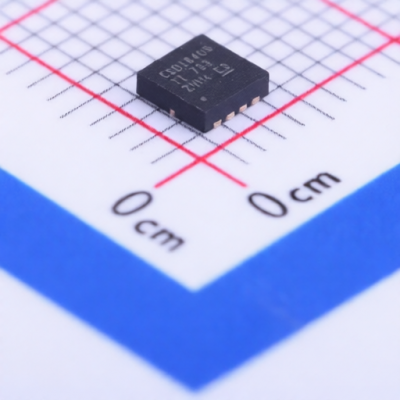

TI CSD16409Q3

Name: TI CSD16409Q3
Brand: TI

Manufacturer: TI

Mfr. Part #: CSD16409Q3

Package: DFN-8(3x3)

Customer #:

Description: 25V 60A 12.4mΩ@4.5V,17A 2.3V@250uA 1 N-channel 2.6W DFN-8(3x3) Single FETs, MOSFETs RoHS

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Package:

DFN-8(3x3)

Drain to Source Voltage:

25V

Current - Continuous Drain(Id):

60A

Operating Temperature -:

-55℃~+150℃

RDS(on):

12.4mΩ@4.5V,17A

Gate Threshold Voltage (Vgs(th)):

2.3V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

55pF

Number:

1 N-channel

Output Capacitance(Coss):

635pF

Input Capacitance(Ciss):

800pF

Pd - Power Dissipation:

2.6W

Gate Charge(Qg):

[email protected]

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
