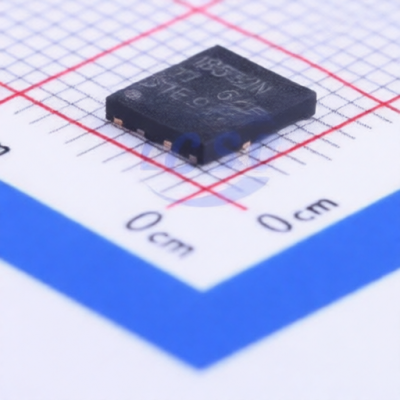

TI CSD18532NQ5BT

Name: TI CSD18532NQ5BT
Brand: TI

Manufacturer: TI

Mfr. Part #: CSD18532NQ5BT

Package: SON-8(5x6)

Customer #:

Description: 60V 151A 4.4mΩ@6V,25A 3.4V@250uA 1 N-channel 156W SON-8(5x6) Single FETs, MOSFETs RoHS

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Package:

SON-8(5x6)

Drain to Source Voltage:

60V

Current - Continuous Drain(Id):

151A

Operating Temperature -:

-55℃~+150℃

RDS(on):

4.4mΩ@6V,25A

Gate Threshold Voltage (Vgs(th)):

3.4V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

21pF

Number:

1 N-channel

Input Capacitance(Ciss):

5.34nF

Output Capacitance(Coss):

644pF

Pd - Power Dissipation:

156W

Gate Charge(Qg):

49nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	250
Sales Unit	Piece
