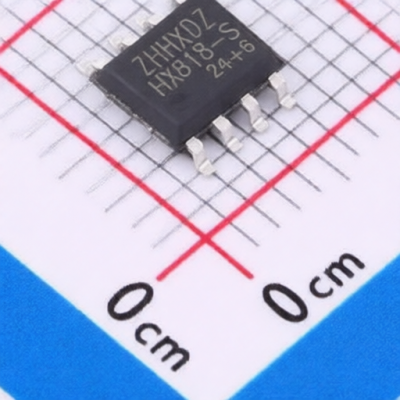

ZHHXDZ HX818-S
Manufacturer:
ZHHXDZ
Asian Brands
Mfr. Part #:
HX818-S
Package:
SOP-8
Customer #:
Key Attributes:
HX818-S High-performance, Low-power Instrumentation Amplifier
Description:
20uV 2nA 2V/us 108dB 2.038MHz 1 SOP-8 Amplifiers RoHS
Products Specifications
Manufacturer:
Package:
SOP-8
Vos - Input Offset Voltage:
20uV
Ib - Input Bias Current:
2nA
Slew Rate:
2V/us
Quiescent Current(Iq):
1.3mA
Common Mode Rejection Ratio(CMRR):
108dB
Output Current:
19mA
Power Supply Rejection Ratio (PSRR):
111dB
Gain Bandwidth Product:
2.038MHz
Voltage - Supply:
-19V~-2.25V;4.5V~38V;2.25V~19V
Input Offset Voltage Drift(Vos TC):
100nV/℃
Maximum Power Supply Range (Vdd-Vss):
38V
Number of Channels:
1
Rail To Rail:
-
Input Offset Current(Ios):
1nA
Noise density(eN):
17nV/√Hz@1kHz
Operating Temperature:
-40℃~+125℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
