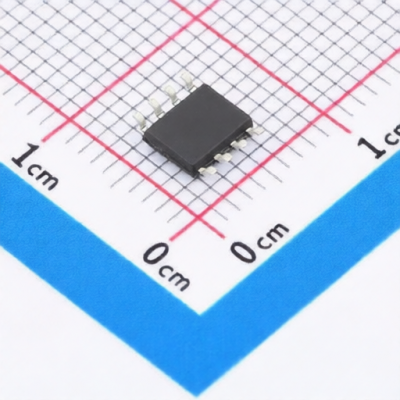

ZHHXDZ HX07-S
Manufacturer:
ZHHXDZ
Asian Brands
Mfr. Part #:
HX07-S
Package:
SOP-8
Customer #:
Key Attributes:
General Purpose Amplifier
Description:
60uV 1.8nA 300V/ms 120dB 600kHz 1 SOP-8 Amplifiers RoHS
Products Specifications
Manufacturer:
Package:
SOP-8
Vos - Input Offset Voltage:
60uV
Input offset current drift(Ios TC):
50pA/℃
Ib - Input Bias Current:
1.8nA
Slew Rate:
300V/ms
Quiescent Current(Iq):
-
Common Mode Rejection Ratio(CMRR):
120dB
Output Current:
-
Gain Bandwidth Product:
600kHz
Voltage - Supply:
-18V~-3V;3V~18V
Input Offset Voltage Drift(Vos TC):
1.8uV/℃
Maximum Power Supply Range (Vdd-Vss):
36V
Number of Channels:
1
Rail To Rail:
-
Input Offset Current(Ios):
800pA
Noise density(eN):
20nV/√Hz@100Hz
Operating Temperature:
-40℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
