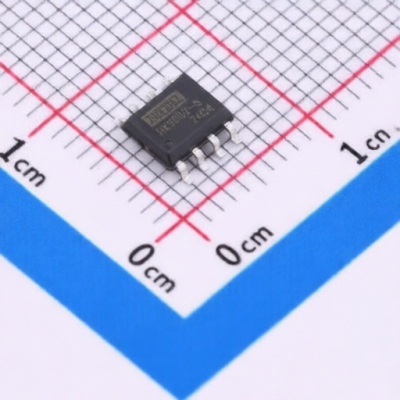

ZHHXDZ HX9002-S
Manufacturer:
ZHHXDZ
Asian Brands
Mfr. Part #:
HX9002-S
Package:
SOP-8
Customer #:
Key Attributes:
Micro-Power 1MHz, Low-Noise, RRIO, 1.8V CMOS Amplifiers
Description:
2.5mV 1pA 1.2V/us 77dB 1MHz 2 Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Amplifiers RoHS
Products Specifications
Manufacturer:
Package:
SOP-8
Vos - Input Offset Voltage:
2.5mV
Ib - Input Bias Current:
1pA
Slew Rate:
1.2V/us
Common Mode Rejection Ratio(CMRR):
77dB
Quiescent Current(Iq):
75uA
Voltage - Supply:
1.8V~5.5V;-2.75V~-900mV;900mV~2.75V
Gain Bandwidth Product:
1MHz
Input Offset Voltage Drift(Vos TC):
1uV/℃
Maximum Power Supply Range (Vdd-Vss):
5.5V
Number of Channels:
2
Rail To Rail:
Rail-to-Rail Input, Rail-to-Rail Output
Input Offset Current(Ios):
1pA
Noise density(eN):
27nV/√Hz@1kHz
Operating Temperature:
-40℃~+125℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
