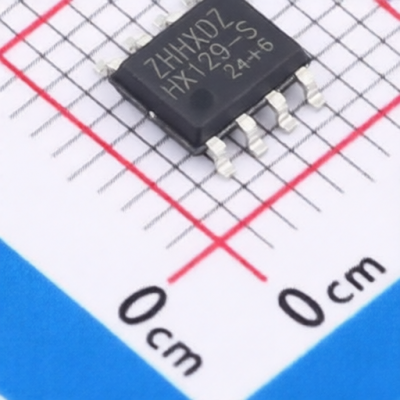

ZHHXDZ HX129-S
Manufacturer:
ZHHXDZ
Asian Brands
Mfr. Part #:
HX129-S
Package:
SOP-8
Customer #:
Key Attributes:
Low-power precision instrumentation amplifier
Description:
50uV 5nA 1.2V/us 120dB 1.3MHz 1 SOP-8 Amplifiers RoHS
Products Specifications
Manufacturer:
Package:
SOP-8
Settling time:
12us
Vos - Input Offset Voltage:
50uV
Input offset current drift(Ios TC):
30pA/℃
Ib - Input Bias Current:
5nA
Slew Rate:
1.2V/us
Quiescent Current(Iq):
700uA
Common Mode Rejection Ratio(CMRR):
120dB
Output Current:
6mA
Gain Bandwidth Product:
1.3MHz
Voltage - Supply:
-18V~-2.25V;4.5V~36V;2.25V~18V
Input Offset Voltage Drift(Vos TC):
500nV/℃
Maximum Power Supply Range (Vdd-Vss):
36V
Number of Channels:
1
Input Offset Current(Ios):
1nA
Noise density(eN):
8nV/√Hz@1kHz
Operating Temperature:
-40℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
