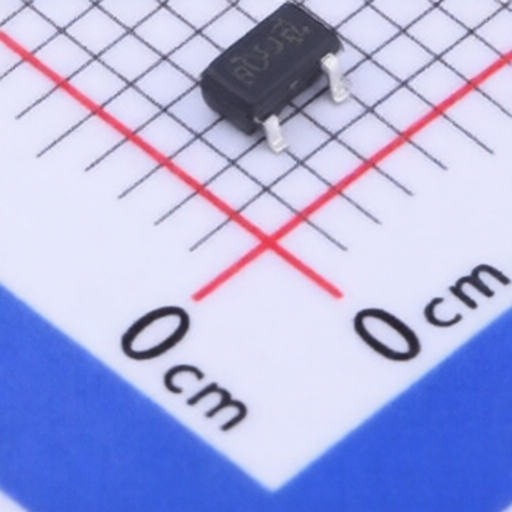

YANGJIE YJL05N06AL
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
YJL05N06AL
Package:
SOT-23-3L
Customer #:
Key Attributes:
MOSFET N-CH 60V 5A SOT-23-3L
Description:
N-Channel 60V 5A 2.5W Surface Mount SOT-23-3L
Datasheet:
YANGJIE YJL05N06AL
Products Specifications
Manufacturer:
Package:
SOT-23-3L
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
35mΩ@10V,5A
Gate Threshold Voltage (Vgs(th)):
1.5V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
62pF@30V
Number:
1 N-channel
Output Capacitance(Coss):
70pF
Input Capacitance(Ciss):
1.018nF@30V
Pd - Power Dissipation:
2.5W
Gate Charge(Qg):
26.4nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
