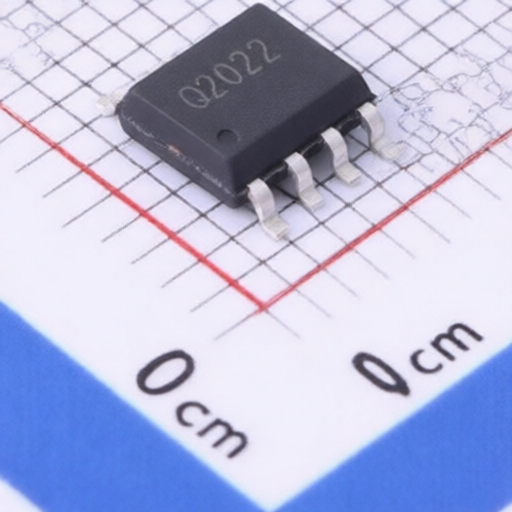

YANGJIE YJS2022A
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
YJS2022A
Package:
SOP-8
Customer #:
Key Attributes:
MOSFET P-CH 20V 13A SOP-8
Description:
P-Channel 20V 13A 3W Surface Mount SOP-8
Datasheet:
YANGJIE YJS2022A
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
13A
Operating Temperature -:
-55℃~+150℃
RDS(on):
10mΩ@4.5V,10A
Gate Threshold Voltage (Vgs(th)):
620mV
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
272pF@10V
Number:
1 P-Channel
Output Capacitance(Coss):
330pF
Input Capacitance(Ciss):
2.992nF@10V
Pd - Power Dissipation:
3W
Gate Charge(Qg):
72.8nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
