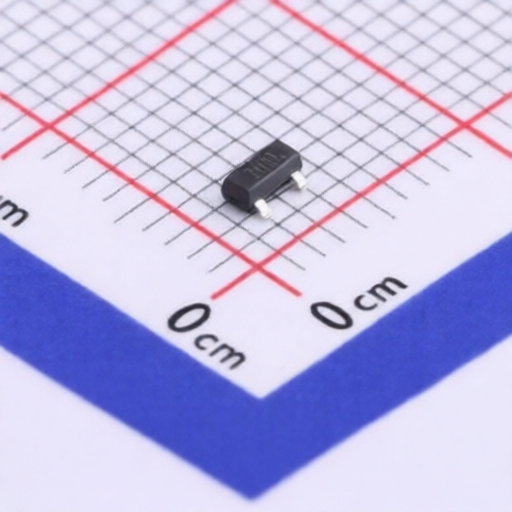

YANGJIE YJL3400A

Name: YANGJIE YJL3400A
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: YJL3400A

Package: SOT-23(TO-236)

Customer #:

Key Attributes: MOSFET N-CH 30V 5.6A SOT-23(TO-236)

Description: N-Channel 30V 5.6A 1.2W Surface Mount SOT-23(TO-236)

Datasheet: YANGJIE YJL3400A

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

SOT-23(TO-236)

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

5.6A

Operating Temperature -:

-55℃~+150℃

RDS(on):

51mΩ@2.5V,3A

Gate Threshold Voltage (Vgs(th)):

650mV

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

36pF@15V

Number:

1 N-channel

Output Capacitance(Coss):

130pF

Input Capacitance(Ciss):

535pF@15V

Pd - Power Dissipation:

1.2W

Gate Charge(Qg):

4.8nC@4.5V

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	3000
Sales Unit	Piece
