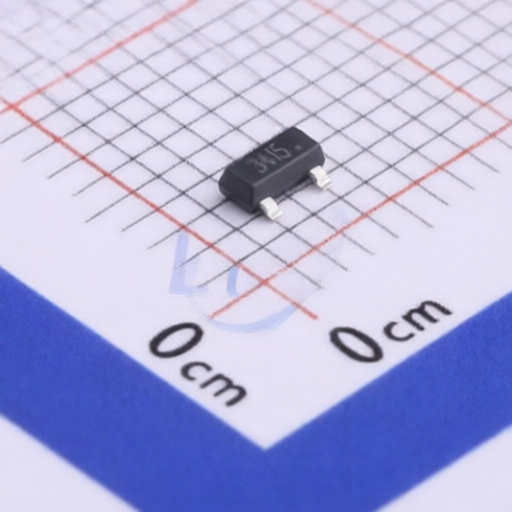

YANGJIE YJL3415A

Name: YANGJIE YJL3415A
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: YJL3415A

Package: SOT-23-3L

Customer #:

Key Attributes: MOSFET P-CH 20V 5.6A SOT-23-3L

Description: P-Channel 20V 5.6A 1.3W Surface Mount SOT-23-3L

Datasheet: YANGJIE YJL3415A

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

SOT-23-3L

Drain to Source Voltage:

20V

Current - Continuous Drain(Id):

5.6A

Operating Temperature -:

-55℃~+150℃

RDS(on):

42mΩ@4.5V,5.6A

Gate Threshold Voltage (Vgs(th)):

400mV

Type:

P-Channel

Reverse Transfer Capacitance (Crss@Vds):

116pF@10V

Number:

1 P-Channel

Output Capacitance(Coss):

219pF

Input Capacitance(Ciss):

940pF@10V

Pd - Power Dissipation:

1.3W

Gate Charge(Qg):

7.2nC@4.5V

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	3000
Sales Unit	Piece

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

YANGJIE

2348 Products

Asian Brand

Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
