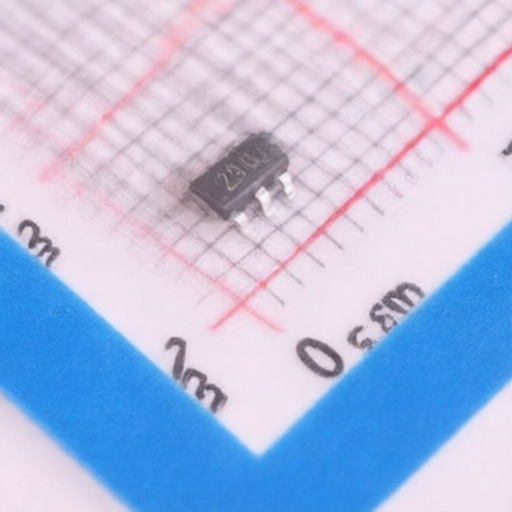

YANGJIE YJS2305A

Name: YANGJIE YJS2305A
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: YJS2305A

Package: SOT-23-6L

Customer #:

Key Attributes: MOSFET P-CH 20V 5.4A SOT-23-6L

Description: P-Channel 20V 5.4A 1.2W Surface Mount SOT-23-6L

Datasheet: YANGJIE YJS2305A

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

SOT-23-6L

Drain to Source Voltage:

20V

Current - Continuous Drain(Id):

5.4A

RDS(on):

63mΩ@1.8V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

1V@250uA

Type:

P-Channel

Reverse Transfer Capacitance (Crss@Vds):

109pF

Number:

1 P-Channel

Output Capacitance(Coss):

130pF

Pd - Power Dissipation:

1.2W

Input Capacitance(Ciss):

1.01nF

Gate Charge(Qg):

10.98nC@4.5V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	3000
Sales Unit	Piece
