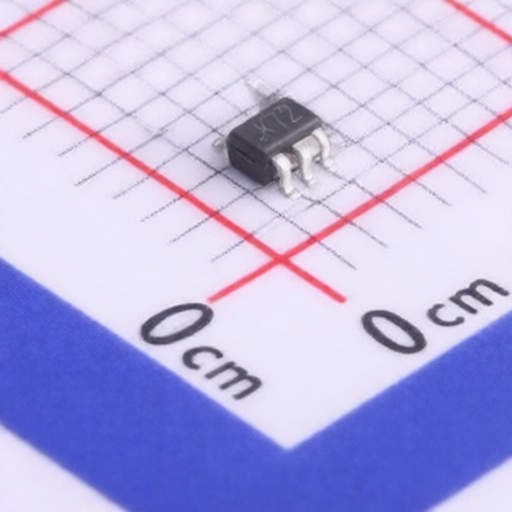

YANGJIE 2N7002DW

Name: YANGJIE 2N7002DW
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: 2N7002DW

Package: SOT-363

Customer #:

Key Attributes: MOSFET N-CH ARR 60V 340mA SOT-363

Description: N-Channel Array 60V 340mA 350mW Surface Mount SOT-363

Datasheet: YANGJIE 2N7002DW

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

SOT-363

Drain to Source Voltage:

60V

Current - Continuous Drain(Id):

340mA

Operating Temperature -:

-55℃~+150℃

RDS(on):

1.2Ω@10V,300mA

Gate Threshold Voltage (Vgs(th)):

2.5V

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

5.5pF@30V

Number:

2 N-Channel

Output Capacitance(Coss):

9.5pF

Input Capacitance(Ciss):

15pF

Pd - Power Dissipation:

350mW

Gate Charge(Qg):

1.7nC@15V

Additional Information

Type	Details
Minimum	20
Multiple	20
Standard Packaging	3000
Sales Unit	Piece
