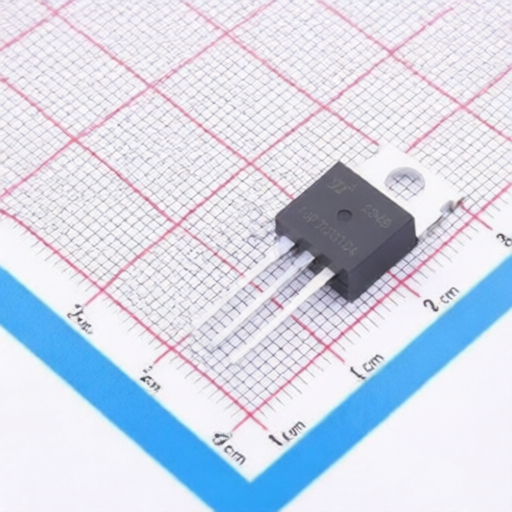

YANGJIE YJP70G10A
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
YJP70G10A
Package:
TO-220
Customer #:
Key Attributes:
MOSFET N-CH 100V 70A TO-220
Description:
N-Channel 100V 70A 125W Through Hole TO-220
Datasheet:
YANGJIE YJP70G10A
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
70A
RDS(on):
11mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
36pF@50V
Number:
1 N-channel
Output Capacitance(Coss):
797pF
Input Capacitance(Ciss):
2.27nF@50V
Pd - Power Dissipation:
125W
Gate Charge(Qg):
32nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
