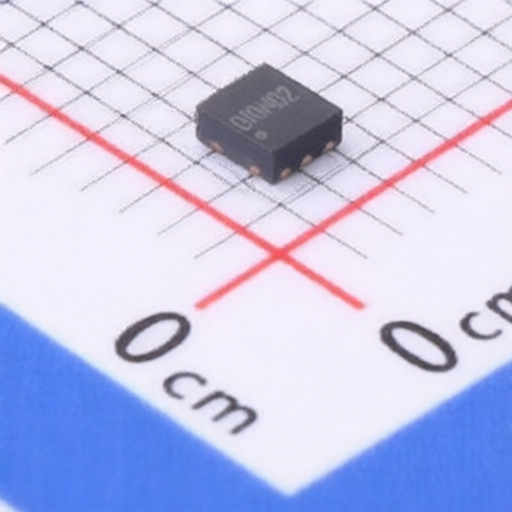

YANGJIE YJQ10N02A
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
YJQ10N02A
Package:
DFN2020-6L
Customer #:
Key Attributes:
MOSFET N-CH 20V 13A DFN2020-6L
Description:
N-Channel 20V 13A 2.2W Surface Mount DFN2020-6L
Datasheet:
YANGJIE YJQ10N02A
Products Specifications
Manufacturer:
Package:
DFN2020-6L
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
13A
Operating Temperature -:
-55℃~+150℃
RDS(on):
18.5mΩ@1.8V,4A
Gate Threshold Voltage (Vgs(th)):
1V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
117pF@10V
Number:
1 N-channel
Output Capacitance(Coss):
133pF
Input Capacitance(Ciss):
888pF@10V
Pd - Power Dissipation:
2.2W
Gate Charge(Qg):
11.05nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
