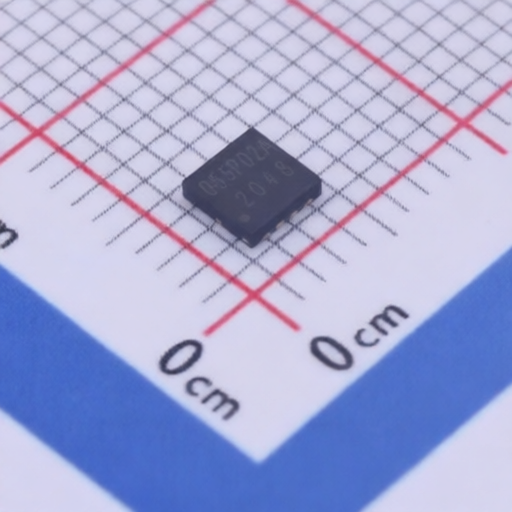

YANGJIE YJQ55P02A

YANGJIE YJQ55P02A

Name: YANGJIE YJQ55P02A
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: YJQ55P02A

Package: DFN3333-8L

Customer #:

Key Attributes: MOSFET P-CH 20V 55A DFN3333-8L

Description: P-Channel 20V 55A 3.2W Surface Mount DFN3333-8L

Datasheet: YANGJIE YJQ55P02A

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

DFN3333-8L

Drain to Source Voltage:

20V

Current - Continuous Drain(Id):

55A

Operating Temperature -:

-55℃~+150℃

RDS(on):

6.5mΩ@4.5V,15A

Gate Threshold Voltage (Vgs(th)):

400mV

Type:

P-Channel

Reverse Transfer Capacitance (Crss@Vds):

477pF@10V

Number:

1 P-Channel

Output Capacitance(Coss):

690pF

Input Capacitance(Ciss):

6.358nF@10V

Pd - Power Dissipation:

3.2W

Gate Charge(Qg):

12.7nC@10V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	5000
Sales Unit	Piece

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

YANGJIE

2348 Products

Asian Brand

Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
