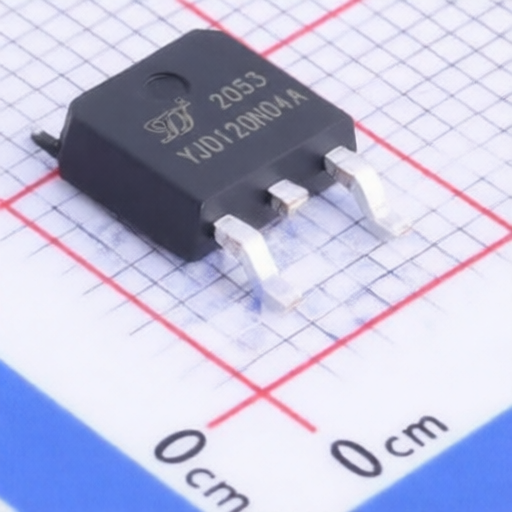

YANGJIE YJD120N04A
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
YJD120N04A
Package:
TO-252
Customer #:
Key Attributes:
MOSFET N-CH 40V 120A TO-252
Description:
N-Channel 40V 120A 110W Surface Mount TO-252
Datasheet:
YANGJIE YJD120N04A
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
120A
Operating Temperature -:
-55℃~+150℃
RDS(on):
2.8mΩ@10V
Gate Threshold Voltage (Vgs(th)):
1V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
360pF@20V
Number:
1 N-channel
Output Capacitance(Coss):
436pF
Input Capacitance(Ciss):
4.645nF@20V
Pd - Power Dissipation:
110W
Gate Charge(Qg):
49nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
