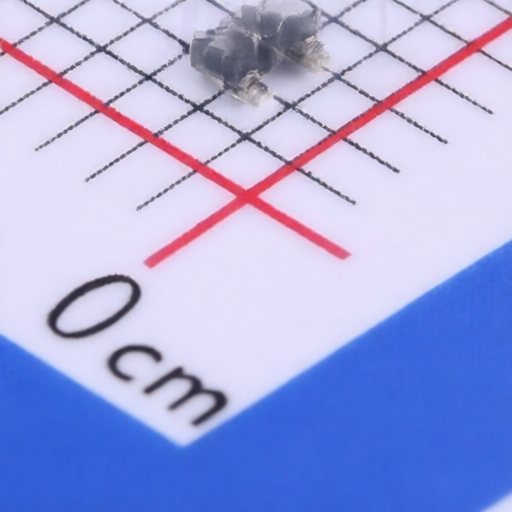

YANGJIE 2N7002

Name: YANGJIE 2N7002
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: 2N7002

Package: SOT-23

Customer #:

Key Attributes: MOSFET N-CH 60V 340mA SOT-23

Description: N-Channel 60V 340mA 350mW Surface Mount SOT-23

Datasheet: YANGJIE 2N7002

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

SOT-23

Drain to Source Voltage:

60V

Current - Continuous Drain(Id):

340mA

Operating Temperature -:

-55℃~+150℃

RDS(on):

3Ω@4.5V

Gate Threshold Voltage (Vgs(th)):

2.5V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

5.5pF@30V

Number:

1 N-channel

Output Capacitance(Coss):

10pF

Input Capacitance(Ciss):

16pF@30V

Pd - Power Dissipation:

350mW

Gate Charge(Qg):

2.4nC@10V

Additional Information

Type	Details
Minimum	50
Multiple	50
Standard Packaging	3000
Sales Unit	Piece

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

YANGJIE

2348 Products

Asian Brand

Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
