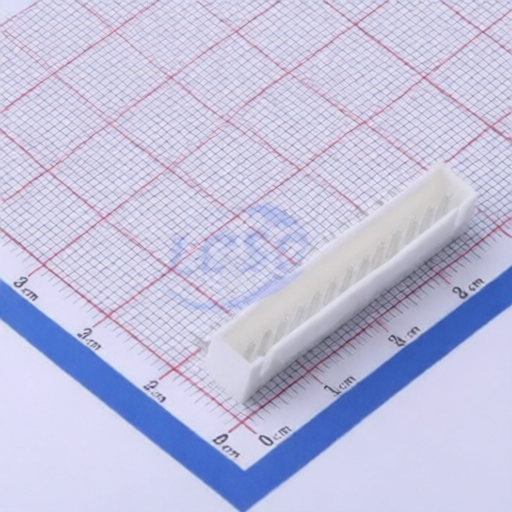

TXGA FWF25013-S13B22W1B
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF25013-S13B22W1B
Package:
Through Hole,Right Angle,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 13POS 2.5mm
Description:
Connector Header 13 position 2.5mm Pitch 3A Right Angle -25℃~+85℃
Datasheet:
TXGA FWF25013-S13B22W1B
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.5mm
Y-Width of Bottom Edge on Board:
7.2mm
Pins Structure:
1x13P
Reference Series:
-
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-2
Number of Rows:
1
Mounting Type:
Right Angle
Pitch:
2.5mm
Number of PINs:
13P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
13
Contact Plating:
Tin
Current Rating:
3A
Voltage Rating (Max):
250V
Z-Height of the Board:
5.8mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
TXGA
541 Products
TXGA Industrial Electronics (S.Z.) Co., Ltd is one of the leading suppliers of connector solutions, providing customized connectors and technology-oriented services with wide applicability.
Our partners are in automotive, military, new energy, aviation and other areas with high-level safety and quality standards.
We believe that the long-term development of TXGA depends on both deep insights into the future and down-to-earth actions.
We have been rewarded the title of "National Hight-tech Enterprise", and obtained a range of patents and certificates with domestic and international standards.
