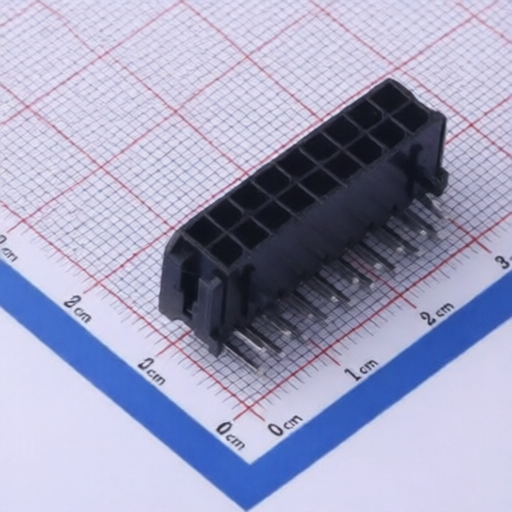

TXGA FWF30002-D18B22K6B
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF30002-D18B22K6B
Package:
Through Hole,Right Angle,P=3mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 18POS 3mm
Description:
Connector Header 18 position 3mm Pitch 5A Right Angle -40℃~+105℃
Datasheet:
TXGA FWF30002-D18B22K6B
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3mm
Pins Structure:
2x9P
Reference Series:
-
Contact Material:
Brass;PA46
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Right Angle
Pitch:
3mm
Number of PINs:
18P
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
9
Contact Plating:
Tin
Current Rating:
5A
Voltage Rating (Max):
250V
Row Spacing:
3mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
