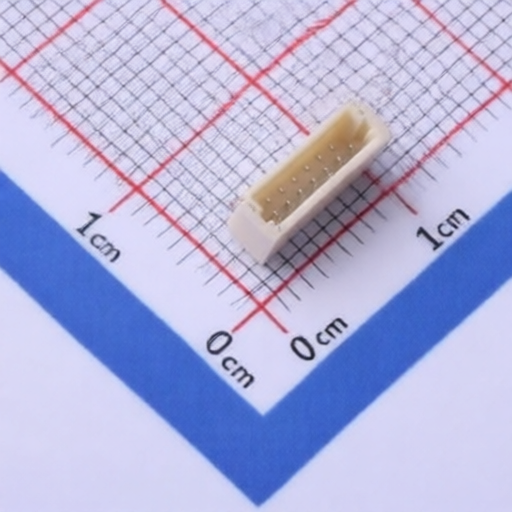

TXGA FWF10001-S07B24W5M
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF10001-S07B24W5M
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 7POS 1mm
Description:
Connector Header 7 position 1mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
Datasheet:
TXGA FWF10001-S07B24W5M
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5mm
Pins Structure:
1x7P
Reference Series:
-
Contact Material:
PA9T;Brass
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Surface Mount, Right Angle
Pitch:
1mm
Number of PINs:
7P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
7
Contact Plating:
Tin
Current Rating:
1A
Voltage Rating (Max):
50V
Z-Height of the Board:
3.1mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
