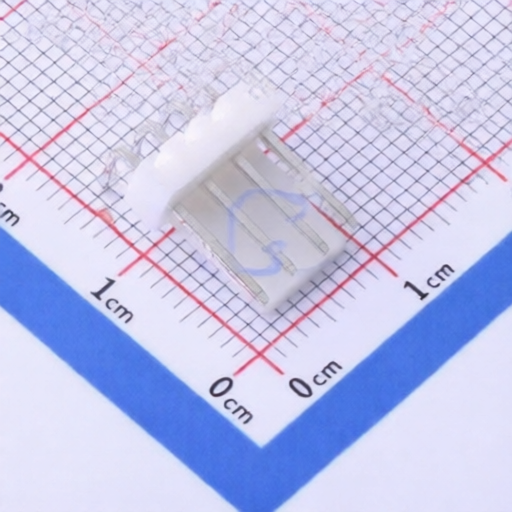

TXGA FWF25402-S04B22W1B-A
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF25402-S04B22W1B-A
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 4POS 2.54mm
Description:
Connector Header 4 position 2.54mm Pitch 2.5A Right Angle -25℃~+85℃
Datasheet:
TXGA FWF25402-S04B22W1B-A
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Y-Width of Bottom Edge on Board:
13.6mm
Reference Series:
-
Pins Structure:
1x4P
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-2
Number of Rows:
1
Mounting Type:
Right Angle
Pitch:
2.54mm
Number of PINs:
4P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
4
Contact Plating:
Tin
Current Rating:
2.5A
Voltage Rating (Max):
250V
Z-Height of the Board:
5.9mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
