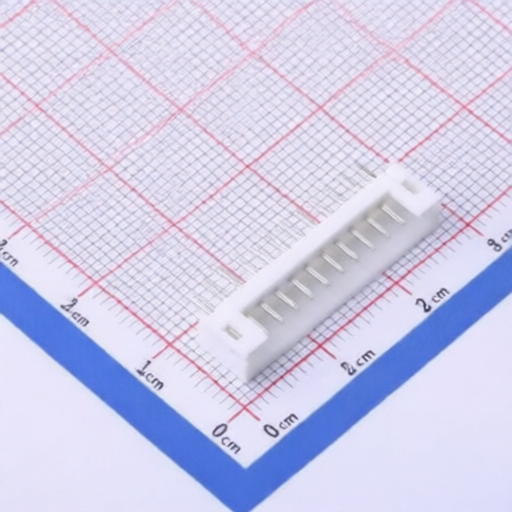

TXGA FWF20001-S12S22W1B
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF20001-S12S22W1B
Package:
Through Hole,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH 12POS 2mm
Description:
Connector Header 12 position 2mm Pitch 2A Through Hole -25℃~+85℃
Datasheet:
TXGA FWF20001-S12S22W1B
Products Specifications
Manufacturer:
Package:
Through Hole,P=2mm
Y-Width of Bottom Edge on Board:
4.7mm
Reference Series:
-
Pins Structure:
1x12P
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-2
Number of Rows:
1
Mounting Type:
Through Hole
Pitch:
2mm
Number of PINs:
12P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
12
Contact Plating:
Tin
Current Rating:
2A
Voltage Rating (Max):
100V
Z-Height of the Board:
6.3mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
