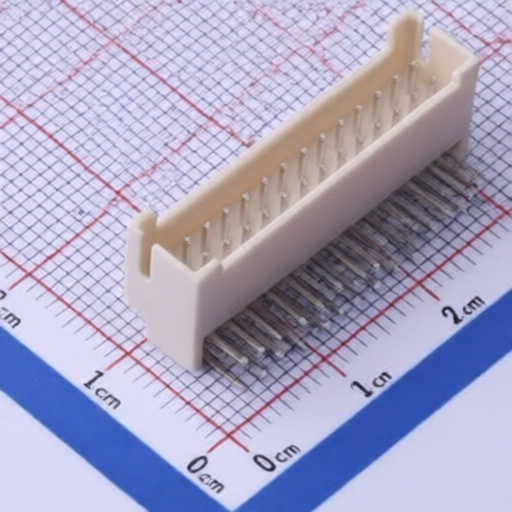

TXGA FWF20017-D28B22W5B
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF20017-D28B22W5B
Package:
Through Hole,Right Angle,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 28POS 2mm
Description:
Connector Header 28 position 2mm Pitch 3A Right Angle -25℃~+85℃
Datasheet:
TXGA FWF20017-D28B22W5B
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2mm
Y-Width of Bottom Edge on Board:
7.3mm
Reference Series:
-
Pins Structure:
2x14P
Contact Material:
Brass;PA46
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Right Angle
Pitch:
2mm
Number of PINs:
28P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
14
Contact Plating:
Tin
Current Rating:
3A
Voltage Rating (Max):
250V
Z-Height of the Board:
10mm
Row Spacing:
2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
