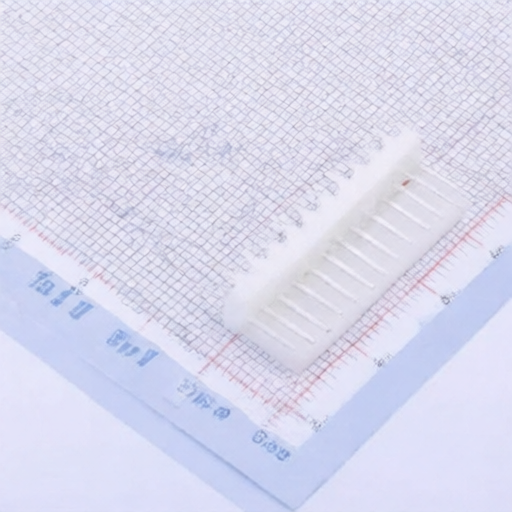

TXGA FWF25401-S14S22W1B
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF25401-S14S22W1B
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER TH 14POS 2.54mm
Description:
Connector Header 14 position 2.54mm Pitch 2.5A Through Hole -25℃~+85℃
Datasheet:
TXGA FWF25401-S14S22W1B
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Y-Width of Bottom Edge on Board:
5.8mm
Pins Structure:
1x14P
Reference Series:
-
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-2
Number of Rows:
1
Mounting Type:
Through Hole
Pitch:
2.54mm
Number of PINs:
14P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
14
Contact Plating:
Tin
Current Rating:
2.5A
Voltage Rating (Max):
250V
Z-Height of the Board:
11.5mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
