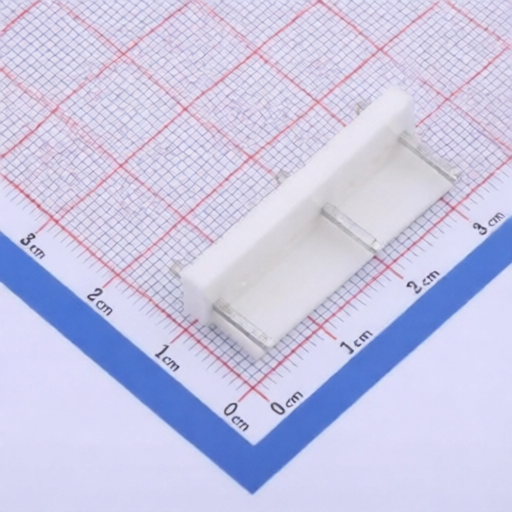

TXGA FWF39601-S08S22W1B-E23567
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF39601-S08S22W1B-E23567
Package:
Through Hole,P=3.96mm
Customer #:
Key Attributes:
CONN HEADER TH 8POS 3.96mm
Description:
Connector Header 8 position 3.96mm Pitch 7A Through Hole -40℃~+85℃
Datasheet:
TXGA FWF39601-S08S22W1B-E23567
Products Specifications
Manufacturer:
Package:
Through Hole,P=3.96mm
Y-Width of Bottom Edge on Board:
8mm
Reference Series:
-
Pins Structure:
1x8P
Contact Material:
Brass
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Through Hole
Pitch:
3.96mm
Number of PINs:
8P
Operating Temperature:
-40℃~+85℃
Number of PINs Per Row:
8
Contact Plating:
Tin
Current Rating:
7A
Voltage Rating (Max):
250V
Z-Height of the Board:
9.4mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 10000 |
| Sales Unit | Piece |
