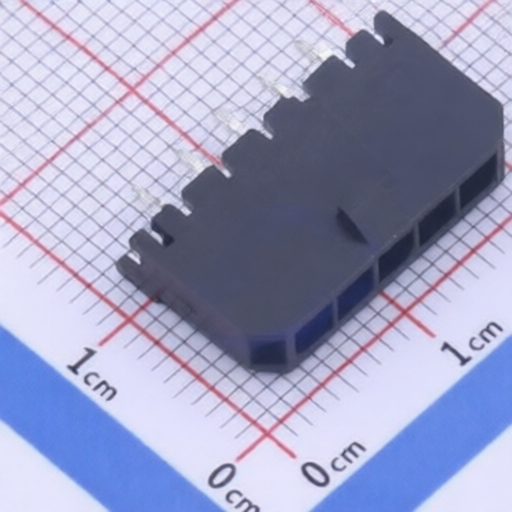

TXGA FWF30004-S05S22K6B
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF30004-S05S22K6B
Package:
Through Hole,P=3mm
Customer #:
Key Attributes:
CONN HEADER TH 5POS 3mm
Description:
Connector Header 5 position 3mm Pitch 5A Through Hole -25℃~+85℃
Datasheet:
TXGA FWF30004-S05S22K6B
Products Specifications
Manufacturer:
Package:
Through Hole,P=3mm
Y-Width of Bottom Edge on Board:
4.35mm
Reference Series:
-
Pins Structure:
1x5P
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Through Hole
Pitch:
3mm
Number of PINs:
5P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
5
Contact Plating:
Tin
Current Rating:
5A
Voltage Rating (Max):
250V
Z-Height of the Board:
11mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
