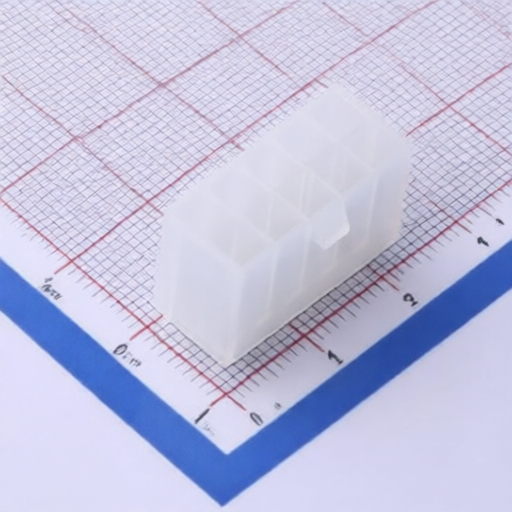

TXGA FWF42002-D10S22TK
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF42002-D10S22TK
Package:
Through Hole,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH 10POS 4.2mm
Description:
Connector Header 10 position 4.2mm Pitch 7A Through Hole -40℃~+105℃
Datasheet:
TXGA FWF42002-D10S22TK
Products Specifications
Manufacturer:
Package:
Through Hole,P=4.2mm
Y-Width of Bottom Edge on Board:
10.2mm
Reference Series:
-
Pins Structure:
2x5P
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Through Hole
Pitch:
4.2mm
Number of PINs:
10P
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
5
Contact Plating:
Tin
Current Rating:
7A
Voltage Rating (Max):
600V
Z-Height of the Board:
12.9mm
Row Spacing:
4.2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
