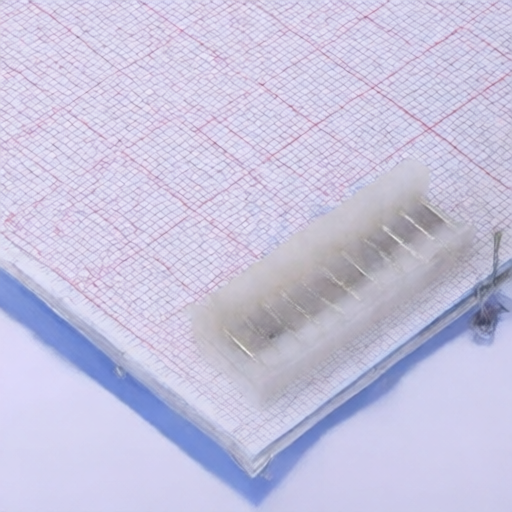

TXGA FWF39603-S10S22TB
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF39603-S10S22TB
Package:
Through Hole,P=3.96mm
Customer #:
Key Attributes:
CONN HEADER TH 10POS 3.96mm
Description:
Connector Header 10 position 3.96mm Pitch 6A Through Hole -25℃~+85℃
Datasheet:
TXGA FWF39603-S10S22TB
Products Specifications
Manufacturer:
Package:
Through Hole,P=3.96mm
Y-Width of Bottom Edge on Board:
10mm
Pins Structure:
1x10P
Reference Series:
CH
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Through Hole
Pitch:
3.96mm
Number of PINs:
10P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
10
Contact Plating:
Tin
Current Rating:
6A
Voltage Rating (Max):
250V
Z-Height of the Board:
12.7mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
