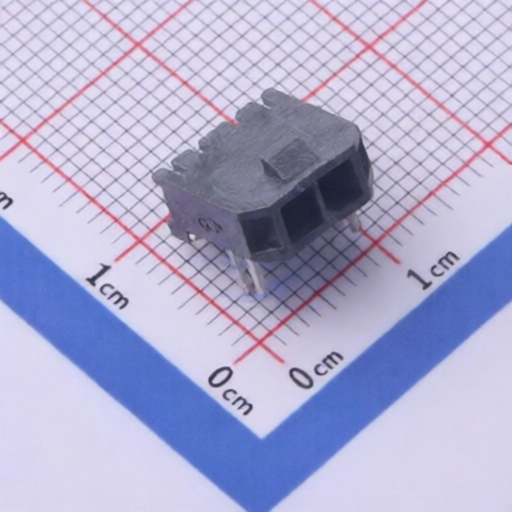

TXGA FWF30006-S02B23K6M
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF30006-S02B23K6M
Package:
SMD,P=3mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 2POS 3mm
Description:
Connector Header 2 position 3mm Pitch 5A Surface Mount, Right Angle -25℃~+85℃
Datasheet:
TXGA FWF30006-S02B23K6M
Products Specifications
Manufacturer:
Package:
SMD,P=3mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
9.9mm
Pins Structure:
1x2P
Reference Series:
-
Contact Material:
Brass;LCP
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Surface Mount, Right Angle
Pitch:
3mm
Number of PINs:
2P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
2
Contact Plating:
Tin
Current Rating:
5A
Voltage Rating (Max):
250V
Z-Height of the Board:
5.57mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
