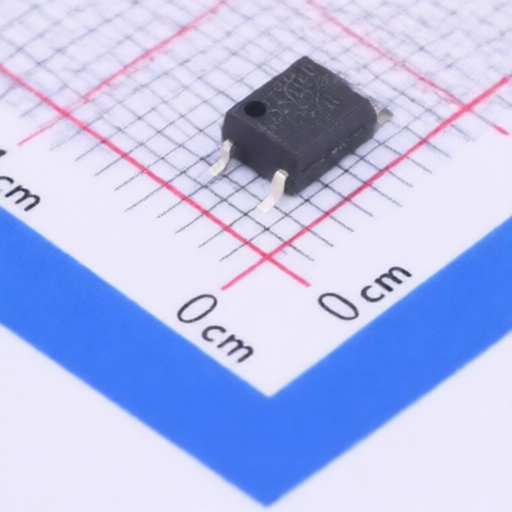

TOSHIBA TLP2301(TPL,E
Manufacturer:
TOSHIBA
Mfr. Part #:
TLP2301(TPL,E
Package:
SOP-4-2.54mm
Customer #:
Key Attributes:
Photocouplers GaAtAs Infrared LED & Photo IC
Description:
50mA 5V 1.25V DC SOP-4-2.54mm Logic Output Optoisolators RoHS
Datasheet:
TOSHIBA TLP2301(TPL,E
Products Specifications
Manufacturer:
Package:
SOP-4-2.54mm
Power Dissipation:
200mW
Output Current:
50mA
Low Level Delay Time:
30us
High Level Delay Time:
30us
Reverse Voltage:
5V
Voltage - Forward(Vf):
1.25V
Current transfer ratio:
50%
Voltage - Supply:
-
Forward Current(If):
50mA
Operating Temperature:
-55℃~+125℃
Number of Channels:
1
Input threshold current:
-
Isolation Voltage(Vrms):
3.75kV
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
