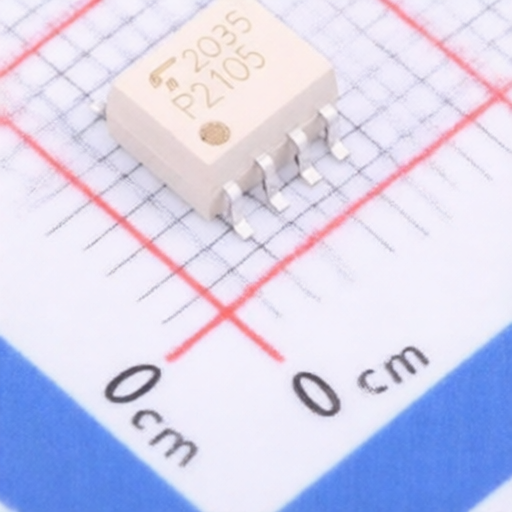

TOSHIBA TLP2105(TP,F)

TOSHIBA TLP2105(TP,F)

Name: TOSHIBA TLP2105(TP,F)
Brand: TOSHIBA

Manufacturer: TOSHIBA

Mfr. Part #: TLP2105(TP,F)

Package: SO-8

Customer #:

Description: 25mA 5V 1.65V 4.5V~20V DC SO-8 Logic Output Optoisolators RoHS

Datasheet: TOSHIBA TLP2105(TP,F)

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Logic Output Optoisolators

Manufacturer:

TOSHIBA

Package:

SO-8

Power Dissipation:

75mW

Output Current:

25mA

Low Level Delay Time:

250ns

High Level Delay Time:

250ns

Reverse Voltage:

Voltage - Forward(Vf):

1.65V

Voltage - Supply:

4.5V~20V

Forward Current(If):

20mA

Operating Temperature:

-40℃~+100℃

CMTI(kV/us):

10kV/us

Number of Channels:

Input threshold current:

1.6mA

Isolation Voltage(Vrms):

2.5kV

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2500
Sales Unit	Piece
