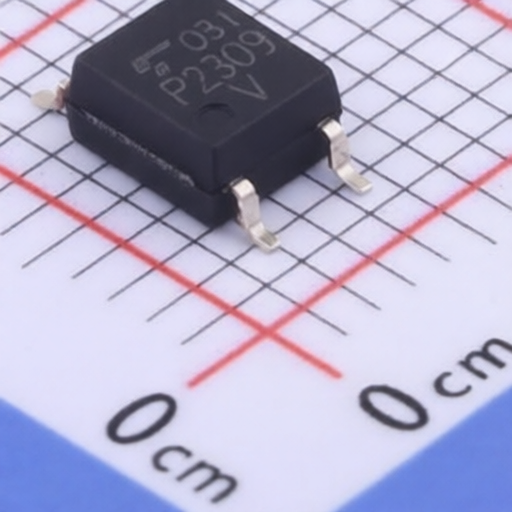

TOSHIBA TLP2309(V4-TPL,E
Manufacturer:
TOSHIBA
Mfr. Part #:
TLP2309(V4-TPL,E
Package:
SO-5-4.6mm
Customer #:
Key Attributes:
Photocouplers Infrared LED & Photo IC
Description:
8mA 5V 1.55V 2.7V~20V DC SO-5-4.6mm Logic Output Optoisolators RoHS
Datasheet:
TOSHIBA TLP2309(V4-TPL,E
Products Specifications
Manufacturer:
Package:
SO-5-4.6mm
Output Current:
8mA
Reverse Voltage:
5V
Voltage - Forward(Vf):
1.55V
Current transfer ratio:
15%
Voltage - Supply:
2.7V~20V
Forward Current(If):
25mA
Operating Temperature:
-40℃~+110℃
CMTI(kV/us):
15kV/us
Isolation Voltage(Vrms):
3.75kV
Number of Channels:
1
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
