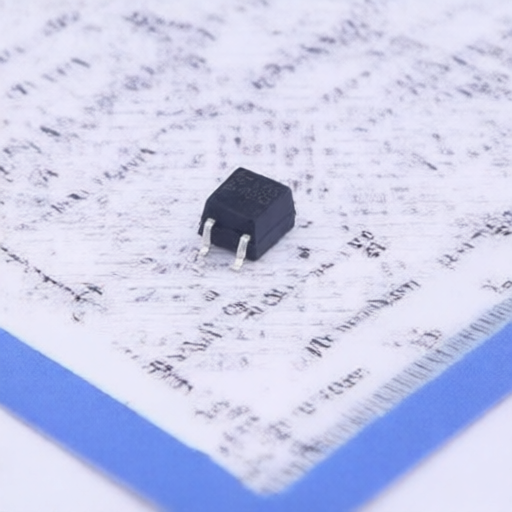

TOSHIBA TLP105(TPL,F)
Manufacturer:
TOSHIBA
Mfr. Part #:
TLP105(TPL,F)
Package:
SOP-5-175mil
Customer #:
Key Attributes:
Photo Coupler Isolated Bus Drivers, High-Speed Line Receivers, Microprocessor System Interfaces
Description:
20V 25mA 5V 1.57V 4.5V~20V DC SOP-5-175mil Logic Output Optoisolators RoHS
Datasheet:
TOSHIBA TLP105(TPL,F)
Products Specifications
Manufacturer:
Package:
SOP-5-175mil
Load Voltage:
20V
Power Dissipation:
75mW
Output Current:
25mA
Low Level Delay Time:
250ns
High Level Delay Time:
250ns
Reverse Voltage:
5V
Voltage - Forward(Vf):
1.57V
Voltage - Supply:
4.5V~20V
Forward Current(If):
10mA
Operating Temperature:
-40℃~+100℃
CMTI(kV/us):
10kV/us
Number of Channels:
1
Input threshold current:
1.6mA
Isolation Voltage(Vrms):
3.75kV
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
