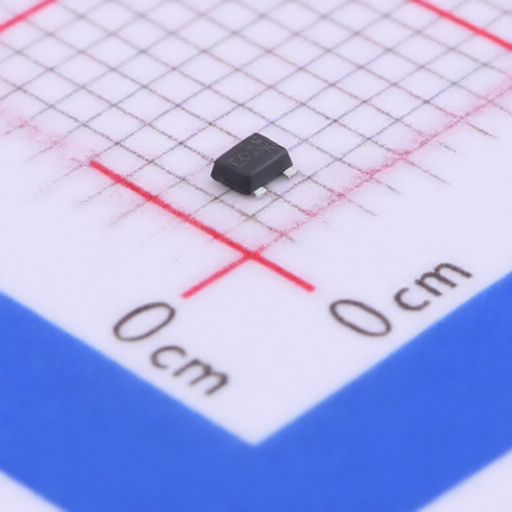

PANJIT PJE8402_R1_00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJE8402_R1_00001
Package:
SOT-523
Customer #:
Description:
20V 700mA 150mΩ@4.5V 1V@250uA 1 N-channel 300mW SOT-523 Single FETs, MOSFETs RoHS
Datasheet:
PANJIT PJE8402_R1_00001
Products Specifications
Manufacturer:
Package:
SOT-523
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
700mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
150mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
9pF@10V
Number:
1 N-channel
Input Capacitance(Ciss):
92pF@10V
Pd - Power Dissipation:
300mW
Gate Charge(Qg):
1.6nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
