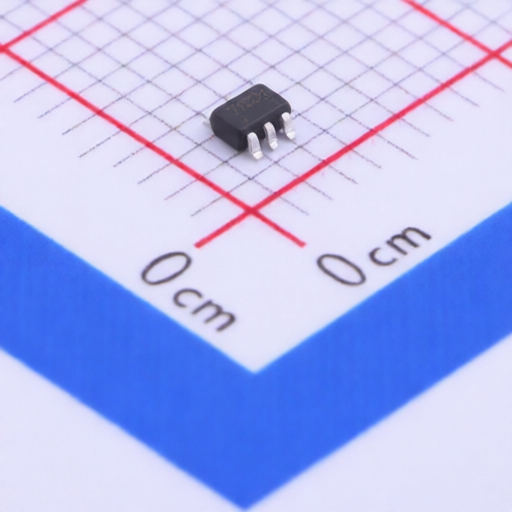

PANJIT 2N7002DW_R1_00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
2N7002DW_R1_00001
Package:
SOT-363
Customer #:
Key Attributes:
N-Channel, Id:115mA, Vdss:60V
Description:
60V 115mA 5Ω@10V,500mA 2.5V@250uA 2 N-Channel 200mW SOT-363 Single FETs, MOSFETs RoHS
Datasheet:
PANJIT 2N7002DW_R1_00001
Products Specifications
Manufacturer:
Package:
SOT-363
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
115mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
5Ω@10V,500mA
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
5pF@25V
Number:
2 N-Channel
Input Capacitance(Ciss):
50pF
Pd - Power Dissipation:
200mW
Gate Charge(Qg):
700pC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
PANJIT
1418 Products
Innovation, Development, Responsibility, Sustainability
PANJIT is a public company founded in May 1986. We are a discrete manufacturer, a member of Electronic Industry Citizenship Coalition (EICC), and have ISO/TS-16949, ISO-9001, OHSAS-18001 certifications.
PANJIT is vertical integrated. We self-design and produce the wafer and manufacture our products. With insight observation and core technologies, PANJIT is able to continuously launch low profile products and accurate power rating devices which conforms to the customer needs.
PANJIT commits to serve customers with the best service, thus we have established sales offices worldwide. We have sites in North America, Germany, Korea and China which allows us to provide better and prompt service.
