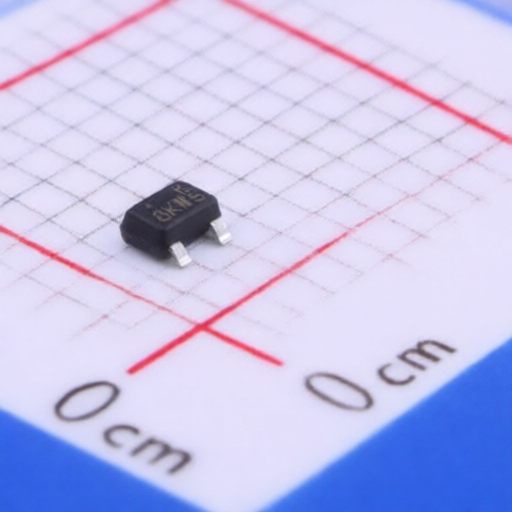

PANJIT PJC138K_R1_00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJC138K_R1_00001
Package:
SOT-323-3
Customer #:
Key Attributes:
N-Channel Enhancement Mode MOSFET, Current: 360mA, Voltage: 50V
Description:
50V 360mA 4.5Ω@2.5V 1.5V@250uA 1 N-channel 236mW SOT-323-3 Single FETs, MOSFETs RoHS
Datasheet:
PANJIT PJC138K_R1_00001
Products Specifications
Manufacturer:
Package:
SOT-323-3
Drain to Source Voltage:
50V
Current - Continuous Drain(Id):
360mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
4.5Ω@2.5V
Gate Threshold Voltage (Vgs(th)):
1.5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
5pF
Number:
1 N-channel
Output Capacitance(Coss):
20pF
Input Capacitance(Ciss):
50pF
Pd - Power Dissipation:
236mW
Gate Charge(Qg):
1nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
