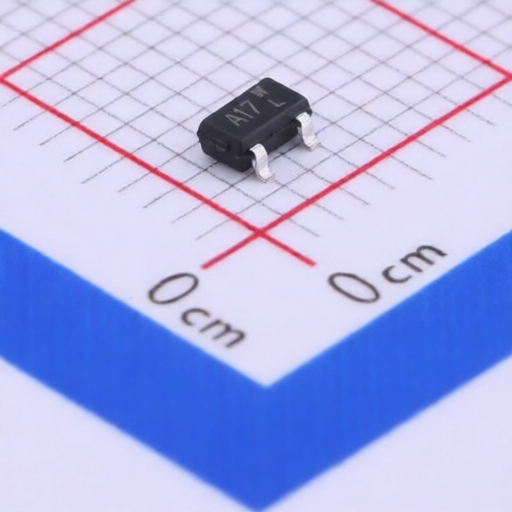

PANJIT PJA3417
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJA3417
Package:
SC-59
Customer #:
Key Attributes:
P-Channel Enhancement Mode MOSFET, Current: -5.2A, Voltage: -20V
Description:
20V 5.2A 50mΩ@1.8V 900mV@250uA 1 P-Channel 1.25W SC-59 Single FETs, MOSFETs RoHS
Datasheet:
PANJIT PJA3417
Products Specifications
Manufacturer:
Package:
SC-59
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
5.2A
Operating Temperature -:
-55℃~+150℃
RDS(on):
50mΩ@1.8V
Gate Threshold Voltage (Vgs(th)):
900mV@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
125pF
Number:
1 P-Channel
Output Capacitance(Coss):
153pF
Input Capacitance(Ciss):
1.758nF
Pd - Power Dissipation:
1.25W
Gate Charge(Qg):
18.9nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
