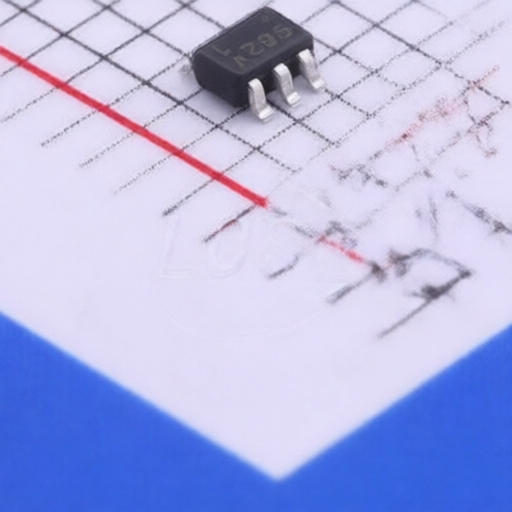

PANJIT BSS8402DW_R1_00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
BSS8402DW_R1_00001
Package:
SOT-363
Customer #:
Description:
60V 130mA 7Ω@10V 2.5V@250uA 1 N-Channel + 1 P-Channel 200mW SOT-363 Single FETs, MOSFETs RoHS
Datasheet:
PANJIT BSS8402DW_R1_00001
Products Specifications
Manufacturer:
Package:
SOT-363
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
130mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
7Ω@10V
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
12pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
25pF
Input Capacitance(Ciss):
50pF
Pd - Power Dissipation:
200mW
Gate Charge(Qg):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
