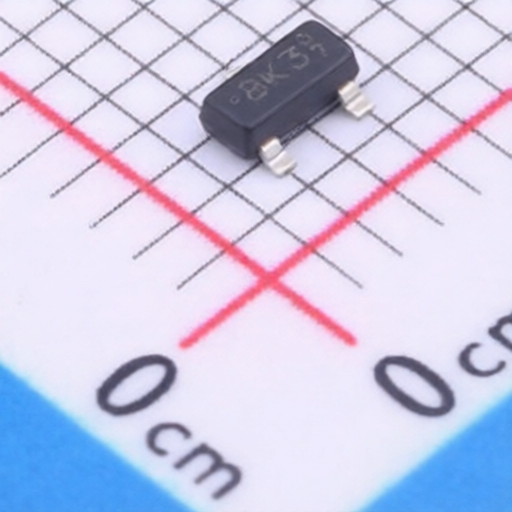

PANJIT PJA138K_R1_00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJA138K_R1_00001
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 50V 500mA SOT-23
Description:
N-Channel 50V 500mA 500mW Surface Mount SOT-23
Datasheet:
PANJIT PJA138K_R1_00001
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
50V
Current - Continuous Drain(Id):
500mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
1.6Ω@10V
Gate Threshold Voltage (Vgs(th)):
1.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
5pF
Number:
1 N-channel
Output Capacitance(Coss):
20pF
Pd - Power Dissipation:
500mW
Input Capacitance(Ciss):
50pF
Gate Charge(Qg):
1nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
