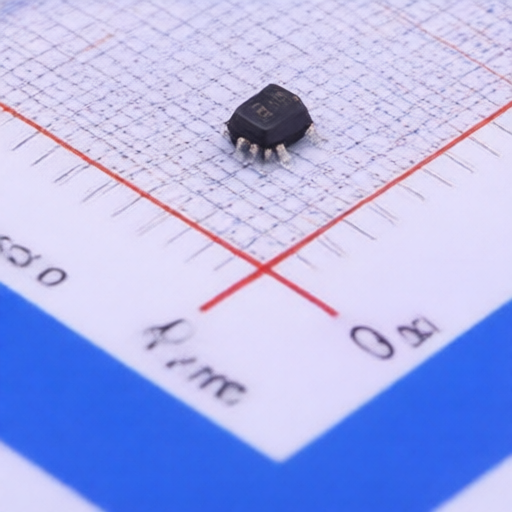

PANJIT PJC7401_R1_00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJC7401_R1_00001
Package:
SOT-323
Customer #:
Key Attributes:
MOSFET P-CH 30V 1.5A SOT-323
Description:
P-Channel 30V 1.5A 350mW Surface Mount SOT-323
Datasheet:
PANJIT PJC7401_R1_00001
Products Specifications
Manufacturer:
Package:
SOT-323
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
1.5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
115mΩ@10V
Gate Threshold Voltage (Vgs(th)):
1.3V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
25pF
Number:
1 P-Channel
Output Capacitance(Coss):
38pF
Input Capacitance(Ciss):
443pF
Pd - Power Dissipation:
350mW
Gate Charge(Qg):
11nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
PANJIT
1418 Products
Innovation, Development, Responsibility, Sustainability
PANJIT is a public company founded in May 1986. We are a discrete manufacturer, a member of Electronic Industry Citizenship Coalition (EICC), and have ISO/TS-16949, ISO-9001, OHSAS-18001 certifications.
PANJIT is vertical integrated. We self-design and produce the wafer and manufacture our products. With insight observation and core technologies, PANJIT is able to continuously launch low profile products and accurate power rating devices which conforms to the customer needs.
PANJIT commits to serve customers with the best service, thus we have established sales offices worldwide. We have sites in North America, Germany, Korea and China which allows us to provide better and prompt service.
