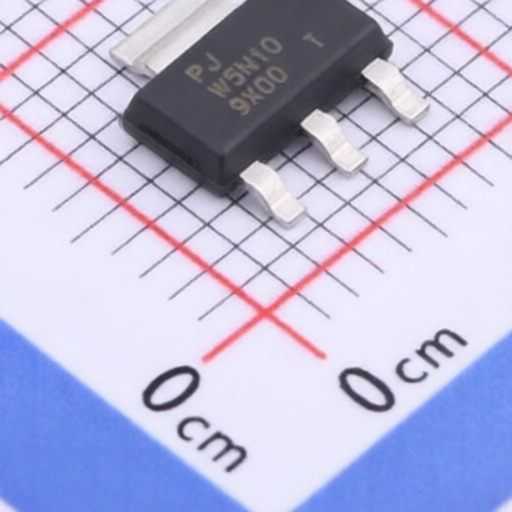

PANJIT PJW5N10
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJW5N10
Package:
SOT-223
Customer #:
Key Attributes:
MOSFET N-CH 100V 5A SOT-223
Description:
N-Channel 100V 5A 8W Surface Mount SOT-223
Datasheet:
PANJIT PJW5N10
Products Specifications
Manufacturer:
Package:
SOT-223
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
135mΩ@6V
Gate Threshold Voltage (Vgs(th)):
3.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
16pF
Number:
1 N-channel
Input Capacitance(Ciss):
707pF
Output Capacitance(Coss):
40pF
Pd - Power Dissipation:
8W
Gate Charge(Qg):
12nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
PANJIT
1418 Products
Innovation, Development, Responsibility, Sustainability
PANJIT is a public company founded in May 1986. We are a discrete manufacturer, a member of Electronic Industry Citizenship Coalition (EICC), and have ISO/TS-16949, ISO-9001, OHSAS-18001 certifications.
PANJIT is vertical integrated. We self-design and produce the wafer and manufacture our products. With insight observation and core technologies, PANJIT is able to continuously launch low profile products and accurate power rating devices which conforms to the customer needs.
PANJIT commits to serve customers with the best service, thus we have established sales offices worldwide. We have sites in North America, Germany, Korea and China which allows us to provide better and prompt service.
