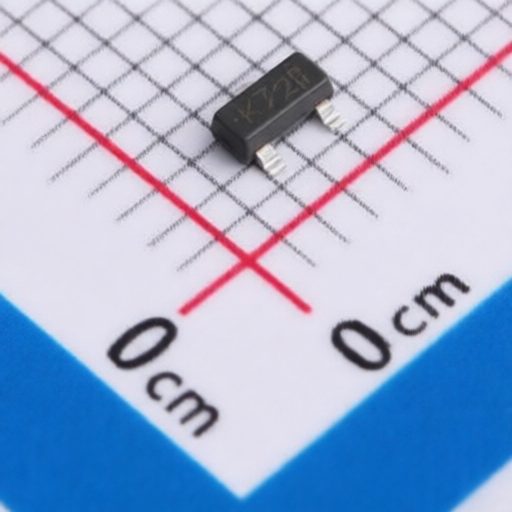

PANJIT 2N7002K-AU_R1_000A2
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
2N7002K-AU_R1_000A2
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 60V 300mA SOT-23
Description:
N-Channel 60V 300mA 500mW Surface Mount SOT-23
Datasheet:
PANJIT 2N7002K-AU_R1_000A2
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
300mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
3Ω@10V,500mA
Gate Threshold Voltage (Vgs(th)):
2.5V
Reverse Transfer Capacitance (Crss@Vds):
8pF@25V
Number:
1 N-channel
Pd - Power Dissipation:
500mW
Input Capacitance(Ciss):
35pF@25V
Gate Charge(Qg):
800pC@5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
PANJIT
1418 Products
Innovation, Development, Responsibility, Sustainability
PANJIT is a public company founded in May 1986. We are a discrete manufacturer, a member of Electronic Industry Citizenship Coalition (EICC), and have ISO/TS-16949, ISO-9001, OHSAS-18001 certifications.
PANJIT is vertical integrated. We self-design and produce the wafer and manufacture our products. With insight observation and core technologies, PANJIT is able to continuously launch low profile products and accurate power rating devices which conforms to the customer needs.
PANJIT commits to serve customers with the best service, thus we have established sales offices worldwide. We have sites in North America, Germany, Korea and China which allows us to provide better and prompt service.
