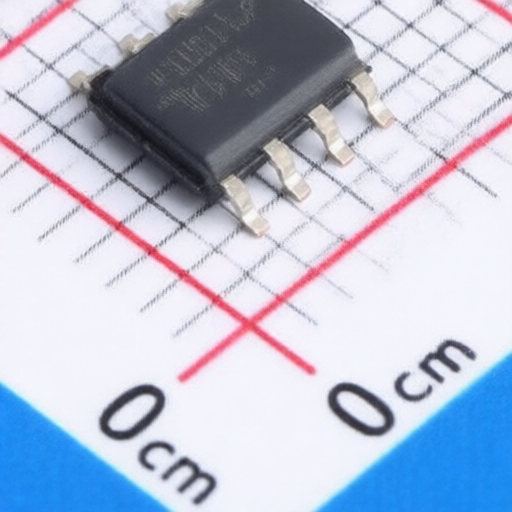

onsemi NCV5701ADR2G
Manufacturer:
onsemi
Mfr. Part #:
NCV5701ADR2G
Package:
SOIC-8
Customer #:
Key Attributes:
High Current IGBT Gate Drivers
Description:
SOIC-8 Gate Drivers RoHS
Datasheet:
onsemi NCV5701ADR2G
Products Specifications
Manufacturer:
Package:
SOIC-8
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
56ns
Propagation Delay tpHL:
63ns
Peak Output Current(Source):
-
Rise Time:
9.2ns
Peak Output Current(Sink):
6A
Features:
Under Voltage Protection;Over Current Protection;Over Temperature Protection
Fall Time:
7.9ns
Quiescent Current(Iq):
900uA
Load Type:
IGBT
Input Voltage (Vin):
13.2V~22V
Driven Configuration:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
