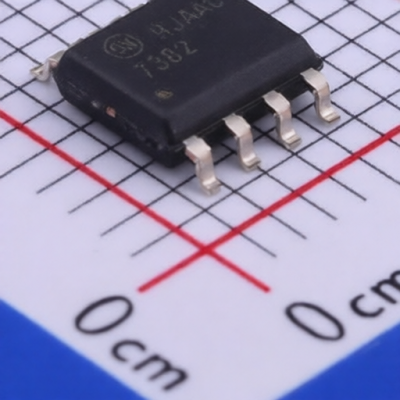

onsemi FAN7382MX
Manufacturer:
onsemi
Mfr. Part #:
FAN7382MX
Package:
SOIC-8
Customer #:
Key Attributes:
High- and Low-Side Gate Driver
Description:
SOIC-8 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SOIC-8
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
170ns
Propagation Delay tpHL:
200ns
Peak Output Current(Source):
350mA
Peak Output Current(Sink):
650mA
Rise Time:
20ns
Features:
Under Voltage Protection
Fall Time:
30ns
Quiescent Current(Iq):
70uA
Load Type:
MOSFET;IGBT
Input Voltage (Vin):
10V~20V
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
