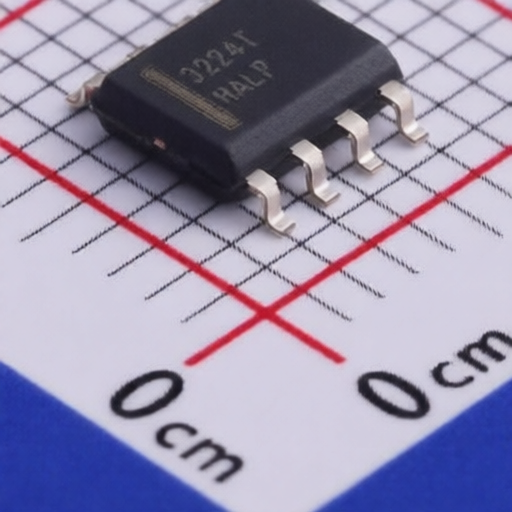

onsemi FAN3224TMX
Manufacturer:
onsemi
Mfr. Part #:
FAN3224TMX
Package:
SOIC-8
Customer #:
Key Attributes:
Dual 4-A High-Speed, Low-Side Gate Drivers
Description:
SOIC-8 Gate Drivers RoHS
Datasheet:
onsemi FAN3224TMX
Products Specifications
Manufacturer:
Package:
SOIC-8
Operating Temperature:
-40℃~+125℃
Input Logic Level - Low:
800mV~1.2V
Peak Output Current(Source):
5A
Rise Time:
12ns
Peak Output Current(Sink):
5A
Features:
Under Voltage Protection
Fall Time:
9ns
Quiescent Current(Iq):
700uA
Load Type:
MOSFET
Input Voltage (Vin):
4.5V~18V
Input Logic Level - High:
1.6V~2V
Driven Configuration:
Low Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
