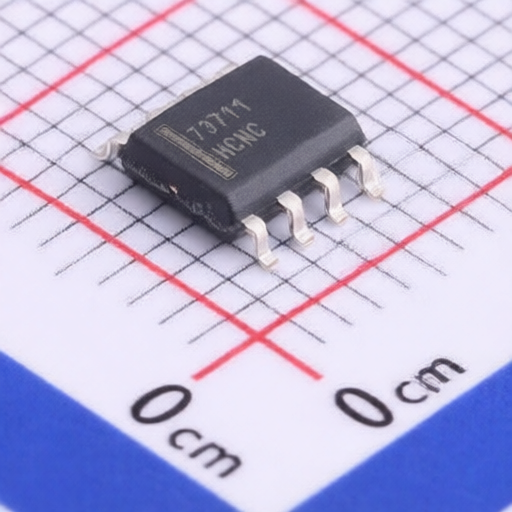

onsemi FAN73711MX
Manufacturer:
onsemi
Mfr. Part #:
FAN73711MX
Package:
SOP-8
Customer #:
Key Attributes:
High-Current, High-Side Gate Drive IC
Description:
SOP-8 Gate Drivers RoHS
Datasheet:
onsemi FAN73711MX
Products Specifications
Manufacturer:
Package:
SOP-8
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
150ns
Propagation Delay tpHL:
150ns
Peak Output Current(Source):
4A
Peak Output Current(Sink):
4A
Rise Time:
25ns
Features:
Under Voltage Protection
Fall Time:
15ns
Quiescent Current(Iq):
70uA
Load Type:
MOSFET;IGBT
Input Voltage (Vin):
10V~20V
Driven Configuration:
High Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
