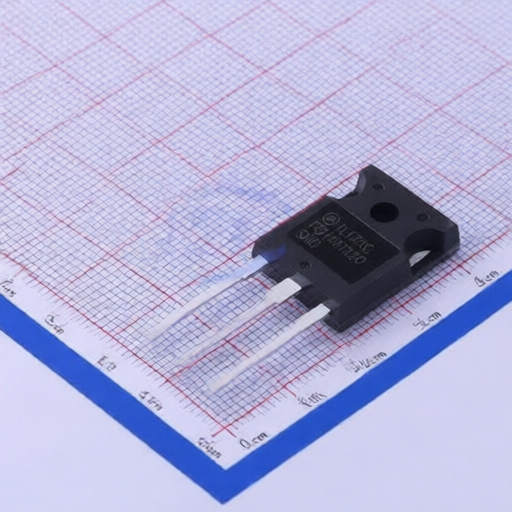

onsemi FGH40T120SMD-F155
Manufacturer:
onsemi
Mfr. Part #:
FGH40T120SMD-F155
Package:
TO-247-3
Customer #:
Description:
555W 1.2kV FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
onsemi FGH40T120SMD-F155
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
475ns
Pd - Power Dissipation:
555W
Td(on):
40ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Operating Temperature:
-55℃~+175℃@(Tj)
Gate Charge(Qg):
370nC
Reverse Recovery Time(trr):
65ns
Switching Energy(Eoff):
1.1mJ
Turn-On Energy (Eon):
2.7mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
