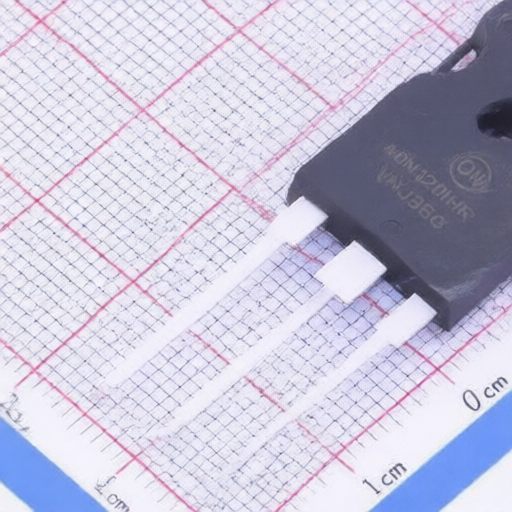

onsemi NGTB40N120IHRWG
Manufacturer:
onsemi
Mfr. Part #:
NGTB40N120IHRWG
Package:
TO-247-3
Customer #:
Description:
384W 1.2kV FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
onsemi NGTB40N120IHRWG
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
230ns
Pd - Power Dissipation:
384W
Td(on):
-
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
-
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
225nC
Operating Temperature:
-40℃~+175℃@(Tj)
Switching Energy(Eoff):
950uJ
Turn-On Energy (Eon):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
